SPACEc: ML-enabled cell type annotation - STELLAR

After preprocessing the single-cell data, the next step is to assign cell types. Alternatively to the SVM (see notebook 3_cell_annotation_ml) model we included a wrapper for STELLAR, that allows to use the model in a more user-friendly way. Further information about STELLAR can be found here: http://snap.stanford.edu/stellar/

# import spacec first
import spacec as sp

#import standard packages
import os
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
import scanpy as sc
import seaborn as sns
import sys
import os
from git import Repo
import anndata

# silencing warnings
import warnings
warnings.filterwarnings('ignore')

sc.settings.set_figure_params(dpi=80, facecolor='white')

INFO:root: * TissUUmaps version: 3.1.1.6
/home/tim/miniforge3/envs/spacec/lib/python3.9/site-packages/numba/np/ufunc/parallel.py:371: NumbaWarning: The TBB threading layer requires TBB version 2021 update 6 or later i.e., TBB_INTERFACE_VERSION >= 12060. Found TBB_INTERFACE_VERSION = 12050. The TBB threading layer is disabled.
  warnings.warn(problem)
/home/tim/miniforge3/envs/spacec/lib/python3.9/site-packages/cudf/utils/gpu_utils.py:89: UserWarning: A GPU with NVIDIA Volta™ (Compute Capability 7.0) or newer architecture is required.
Detected GPU 0: NVIDIA GeForce GTX 1070
Detected Compute Capability: 6.1
  warnings.warn(

# Specify the path to the data
root_path = "/home/user/path/SPACEc/" # inset your own path
data_path = root_path + 'example_data/raw/' # where the data is stored

# where you want to store the output
output_dir = root_path + 'example_data/output/'
os.makedirs(output_dir, exist_ok=True)

# STELLAR path
STELLAR_path = Path(root_path + 'example_data/STELLAR/')

# Test if the path exists, if not create it
if not STELLAR_path.exists():
    STELLAR_path.mkdir(exist_ok=True, parents=True)
    repo_url = 'https://github.com/snap-stanford/stellar.git'
    Repo.clone_from(repo_url, STELLAR_path)

Data Explanation

Annotated tonsil data is used as training & test data.
Tonsillitis data is used as validation data.

# Load training data
adata = sc.read(output_dir + "adata_nn_demo_annotated.h5ad")
adata_train = adata[adata.obs['condition'] == 'tonsil']
adata_val  = adata[adata.obs['condition'] == 'tonsillitis']

Training

import numpy as np
np.isnan(adata_train.X).sum()

0

# downsample the data for demonstration purposes
adata_train = adata_train[0:1000, :]
adata_val = adata_val[0:1000, :]

adata_new = sp.tl.adata_stellar(adata_train,
               adata_val,
               celltype_col = "cell_type",
               x_col = 'x',
               y_col = 'y',
               sample_rate = 0.5,
               distance_thres = 50,
               STELLAR_path = STELLAR_path)

Preparing input data
Building dataset
Running STELLAR
WARNING: You’re trying to run this on 58 dimensions of `.X`, if you really want this, set `use_rep='X'`.
         Falling back to preprocessing with `sc.pp.pca` and default params.

Computing METIS partitioning...
Done!

Loss: 2.237149

Computing METIS partitioning...
Done!

Loss: 0.928735

Computing METIS partitioning...
Done!

Loss: 0.684190

Computing METIS partitioning...
Done!

Loss: 0.572017

Computing METIS partitioning...
Done!

Loss: 0.502303

Computing METIS partitioning...
Done!

Loss: 0.448647

Computing METIS partitioning...
Done!

Loss: 0.406881

Computing METIS partitioning...
Done!

Loss: 0.371281

Computing METIS partitioning...
Done!

Loss: 0.346250

Computing METIS partitioning...
Done!

Loss: 0.323699

Computing METIS partitioning...
Done!

Loss: 0.302637

Computing METIS partitioning...
Done!

Loss: 0.286958

Computing METIS partitioning...
Done!

Loss: 0.273654

Computing METIS partitioning...
Done!

Loss: 0.258830

Computing METIS partitioning...
Done!

Loss: 0.251026

Computing METIS partitioning...
Done!

Loss: 0.244413

Computing METIS partitioning...
Done!

Loss: 0.237930

Computing METIS partitioning...
Done!

Loss: 0.232046

Computing METIS partitioning...
Done!

Loss: 0.233523

Computing METIS partitioning...
Done!

Loss: 0.221670

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.093954

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.896790

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.284005

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.209281

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.157147

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.157361

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.068299

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.099013

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.043633

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.081980

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.055788

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.059038

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.043263

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.047102

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.044601

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.001311

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.003115

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.033478

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.029879

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.025037

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.063846

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.000488

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.000435

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.096257

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.007849

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.034967

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.004217

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.023694

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.026860

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.111071

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.067288

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.008144

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.041159

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.026449

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.088483

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.077746

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.063356

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.043450

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.019570

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.033152

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.043104

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.021286

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.047572

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.043748

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.000301

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: 0.031850

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.062338

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.038398

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.057324

Computing METIS partitioning...
Done!
Computing METIS partitioning...
Done!

Loss: -0.090590

Inspect the results

adata_new.obs
DAPI x y area region_num unique_region condition leiden_1 leiden_1_subcluster cell_type_coarse cell_type_coarse_subcluster cell_type_coarse_f cell_type_coarse_f_subcluster cell_type stellar_pred
0 105.993197 1472.238095 4.986395 147.0 1 reg002 tonsillitis 10 10 Vessel Vessel Vessel Vessel Vessel 12
1 123.677686 1322.851240 5.359504 242.0 1 reg002 tonsillitis 15 15 M2 Macrophage M2 Macrophage M2 Macrophage M2 Macrophage M2 Macrophage 12
2 107.203125 1506.226562 5.710938 256.0 1 reg002 tonsillitis 10 10 Vessel Vessel Vessel Vessel Vessel 12
4 148.702532 1303.702532 9.006329 158.0 1 reg002 tonsillitis 17 17,2 recluster recluster,9 recluster recluster,14 CD4+ T cell 11
5 148.981132 1485.911950 8.899371 159.0 1 reg002 tonsillitis 10 10 Vessel Vessel Vessel Vessel Vessel 12
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
1034 27.318707 1679.764434 264.575058 433.0 1 reg002 tonsillitis 21 21 Epithelial cell Epithelial cell Epithelial cell Epithelial cell Epithelial cell 10
1035 76.632812 1731.346354 264.697917 384.0 1 reg002 tonsillitis 12 12,3 DC DC DC DC DC 11
1036 97.325123 1899.123153 265.847291 203.0 1 reg002 tonsillitis 3 3,1 DC DC DC DC DC 11
1037 84.231092 1957.092437 265.638655 238.0 1 reg002 tonsillitis 4 4 CD4+ T cell CD4+ T cell CD4+ T cell CD4+ T cell CD4+ T cell 11
1038 91.180645 2151.245161 266.135484 155.0 1 reg002 tonsillitis 0 0,0 B cell B cell B cell B cell B cell 11

1000 rows × 15 columns

sc.pl.umap(adata_new, color = 'stellar_pred')
../_images/d7acc6d22f77b409f680117b89c3447e58793bc1f54bf653841e1f0cfd3b7e08.png
marker_list = [
    'FoxP3', 'HLA-DR', 'EGFR', 'CD206', 'BCL2', 'panCK', 'CD11b', 'CD56', 'CD163', 'CD21', 'CD8',
    'Vimentin', 'CCR7', 'CD57', 'CD34', 'CD31', 'CXCR5', 'CD3', 'CD38', 'LAG3', 'CD25', 'CD16', 'CLEC9A', 'CD11c',
    'CD68', 'aSMA', 'CD20', 'CD4','Podoplanin', 'CD15', 'betaCatenin', 'PAX5',
    'MCT', 'CD138', 'GranzymeB', 'IDO-1', 'CD45', 'CollagenIV', 'Arginase-1']

sc.pl.dotplot(adata_new, marker_list, 'stellar_pred', dendrogram = True)

WARNING: dendrogram data not found (using key=dendrogram_stellar_pred). Running `sc.tl.dendrogram` with default parameters. For fine tuning it is recommended to run `sc.tl.dendrogram` independently.
../_images/8d8ef3c090643513f3793e7db0330397f269efb205d6868e87414f8a284b92e0.png

Single-cell visualzation

sp.pl.catplot(
    adata_new, color = "stellar_pred", # specify group column name here e.g. celltype_fine)
    unique_region = "condition", # specify unique_regions here
    X='x', Y='y', # specify x and y columns here
    n_columns=1, # adjust the number of columns for plotting here (how many plots do you want in one row?)
    palette=None, #default is None which means the color comes from the anndata.uns that matches the UMAP
    savefig=False, # save figure as pdf
    output_fname = "", # change it to file name you prefer when saving the figure
    output_dir=output_dir, # specify output directory here (if savefig=True)
)
../_images/bf87f21b36f6cca0378ffc604f05844bf7a70fe6d5bc8e748c9a853faee8bbf5.png

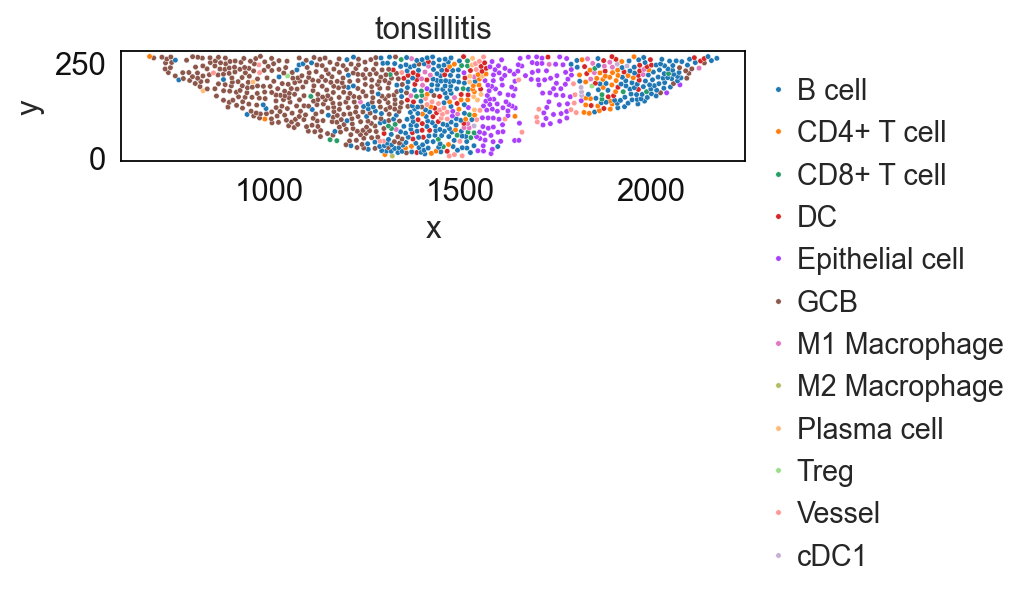

sp.pl.catplot(
    adata_new, color = "cell_type", # specify group column name here e.g. celltype_fine)
    unique_region = "condition", # specify unique_regions here
    X='x', Y='y', # specify x and y columns here
    n_columns=1, # adjust the number of columns for plotting here (how many plots do you want in one row?)
    palette=None, #default is None which means the color comes from the anndata.uns that matches the UMAP
    savefig=False, # save figure as pdf
    output_fname = "", # change it to file name you prefer when saving the figure
    output_dir=output_dir,) # specify output directory here (if savefig=True)
../_images/6c816804d14063a5bd396b4d4a89d24173db2e692ff4162382b30bbfa1b271e6.png
