IMC Breast Cancer

import scanpy as sc
import spacec as sp
import warnings
warnings.filterwarnings("ignore")

2025-04-14 23:26:53.185962: I tensorflow/core/platform/cpu_feature_guard.cc:193] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  SSE4.1 SSE4.2
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
INFO:root: * TissUUmaps version: 3.1.1.6

data_dir = '/Users/yuqitan/Nolan Lab Dropbox/Yuqi Tan/analysis_pipeline/Manuscript/NatComm_091624/revision_031225/analysis/app_spatial_proteomics/'
output_dir = '/Users/yuqitan/Nolan Lab Dropbox/Yuqi Tan/analysis_pipeline/Manuscript/NatComm_091624/revision_031225/analysis/app_spatial_proteomics/output/'

# trying to read the imc
adata = sc.read(data_dir + 'imc_adata.h5ad')
adata

AnnData object with n_obs × n_vars = 4668 × 34
    obs: 'cell type'
    uns: 'cell type_colors'
    obsm: 'spatial'

adata.obs['x'] = [sublist[0] for sublist in adata.obsm['spatial']]
adata.obs['y'] = [sublist[1] for sublist in adata.obsm['spatial']]
adata.obs['condition'] = "imc"

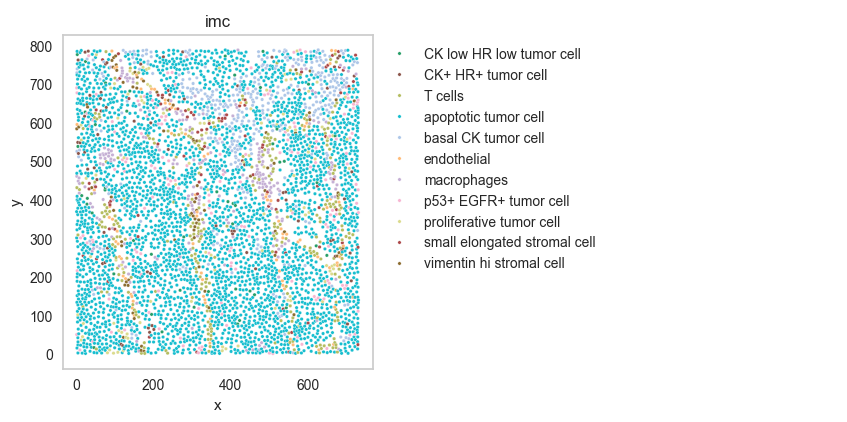

Scatter plot

df = sp.pl.catplot(
    adata,
    color = "cell type", # specify group column name here (e.g. celltype_fine)
    unique_region = "condition", # specify unique_regions here
    X='x', Y='y', # specify x and y columns here
    n_columns=2, # adjust the number of columns for plotting here (how many plots do you want in one row?)
    palette=None, #default is None which means the color comes from the anndata.uns that matches the UMAP
    savefig=False, # save figure as pdf
    output_fname = "", # change it to file name you prefer when saving the figure
    output_dir= output_dir, # specify output directory here (if savefig=True)
)

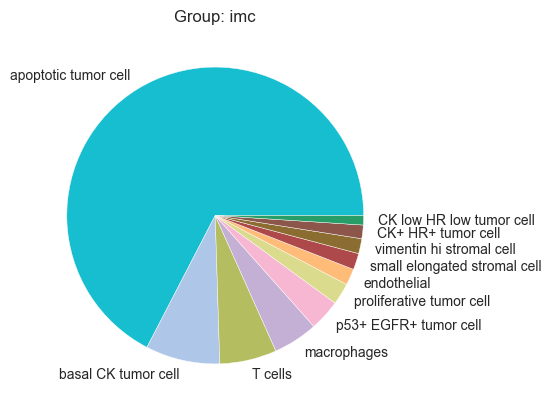

Cell type composition

sp.pl.create_pie_charts(
    adata,
    color = "cell type",
    grouping = "condition",
    show_percentages=False,
    palette=None, #default is None which means the color comes from the anndata.uns that matches the UMAP
    savefig=False, # change it to true if you want to save the figure
    output_fname = "", # change it to file name you prefer when saving the figure
    output_dir = output_dir #output directory for the figure
)

Neighborhood analysis

adata = sp.tl.clustering(
    adata,
    clustering='leiden', # can choose between leiden and louvian
    n_neighbors=10, # number of neighbors for the knn graph
    resolution = 1, #clustering resolution (higher resolution gives more clusters)
    reclustering = False, # if true, no computing the neighbors
    marker_list = None, #if it is None, all variable names are used for clustering
    seed=0, # random seed for clustering - reproducibility
)

Computing neighbors and UMAP
- neighbors

OMP: Info #276: omp_set_nested routine deprecated, please use omp_set_max_active_levels instead.

- UMAP
Clustering
Leiden clustering

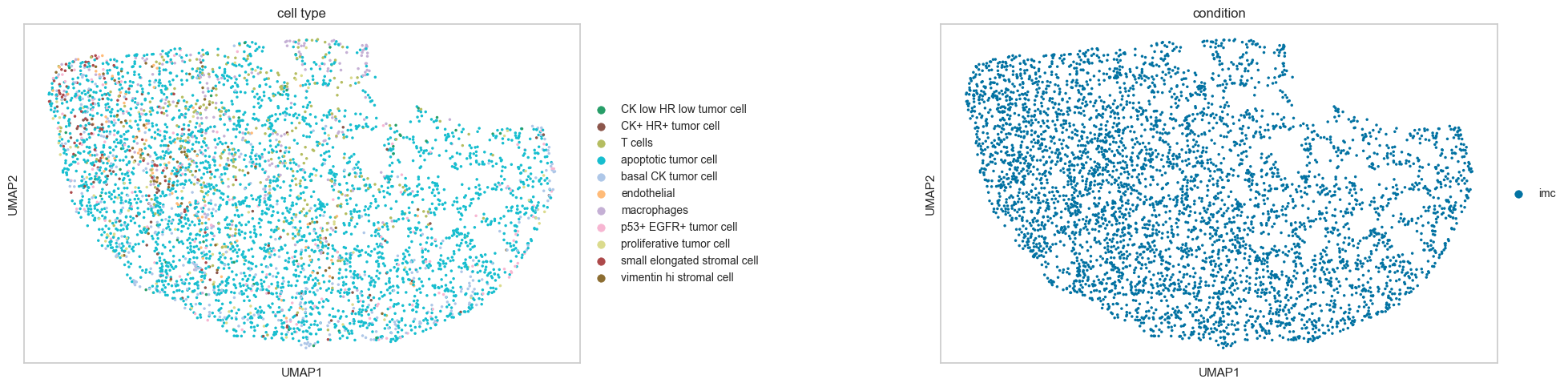

sc.pl.umap(adata, color = ['cell type', 'condition'], wspace=0.5)

... storing 'condition' as categorical

adata = sp.tl.neighborhood_analysis(
    adata,
    unique_region = "condition",
    cluster_col = "cell type",
    X = 'x', Y = 'y',
    k = 20, # k nearest neighbors
    n_neighborhoods = 6, #number of CNs
    elbow = False)

Starting: 1/1 : imc
Finishing: 1/1 : imc 0.03435206413269043 0.034361839294433594

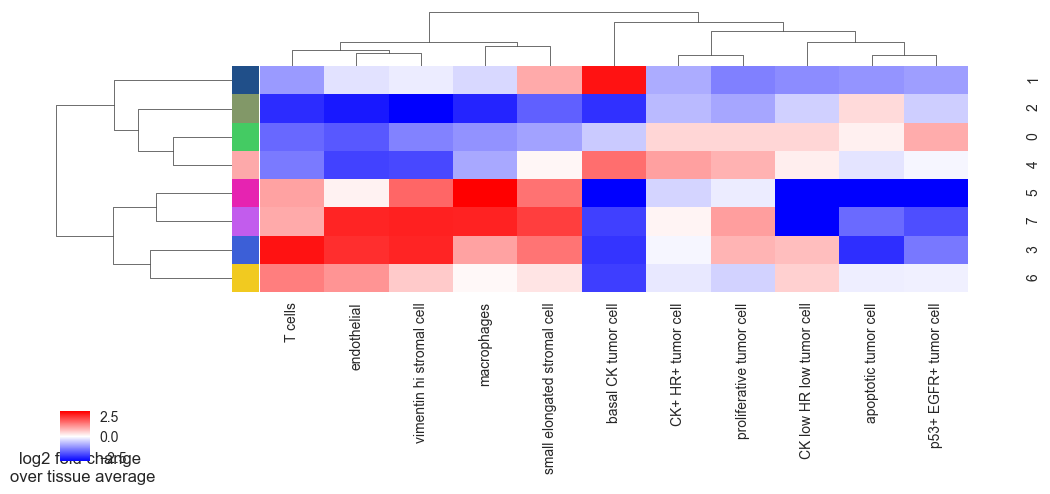

sp.pl.cn_exp_heatmap(
    adata, # anndata
    cluster_col = "cell type", # cell type column
    cn_col = "CN_k20_n6", # CN column
    palette=None, # color palette for CN
    savefig = False, # save the figure
    output_dir = output_dir, # output directory
    rand_seed = 1 # random seed for reproducibility
)

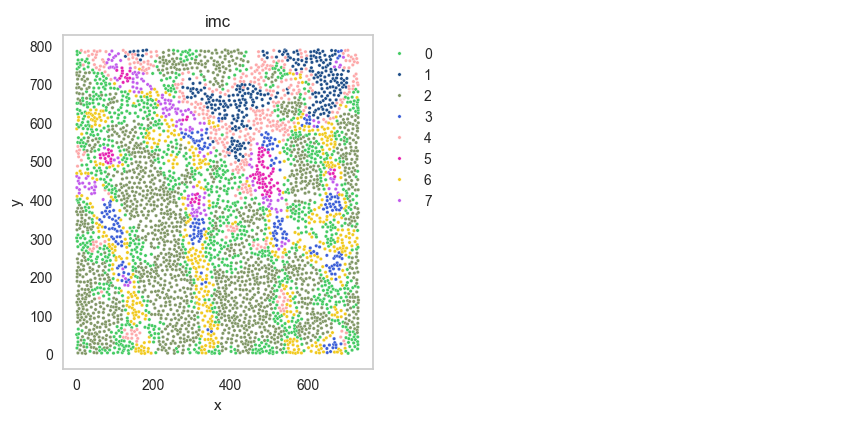

df = catplot(
    adata,
    color = "CN_k20_n6", # specify group column name here (e.g. celltype_fine)
    unique_region = "condition", # specify unique_regions here
    X='x', Y='y', # specify x and y columns here
    n_columns=2, # adjust the number of columns for plotting here (how many plots do you want in one row?)
    palette=None, #default is None which means the color comes from the anndata.uns that matches the UMAP
    savefig=False, # save figure as pdf
    output_fname = "", # change it to file name you prefer when saving the figure
    output_dir= output_dir, # specify output directory here (if savefig=True)
)

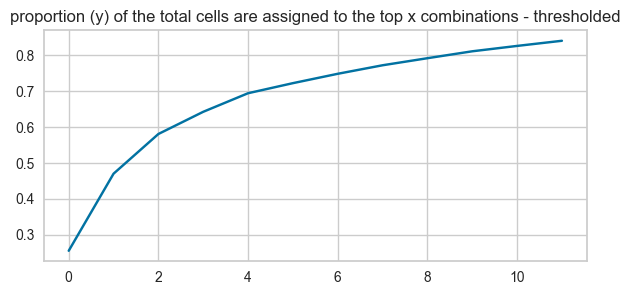

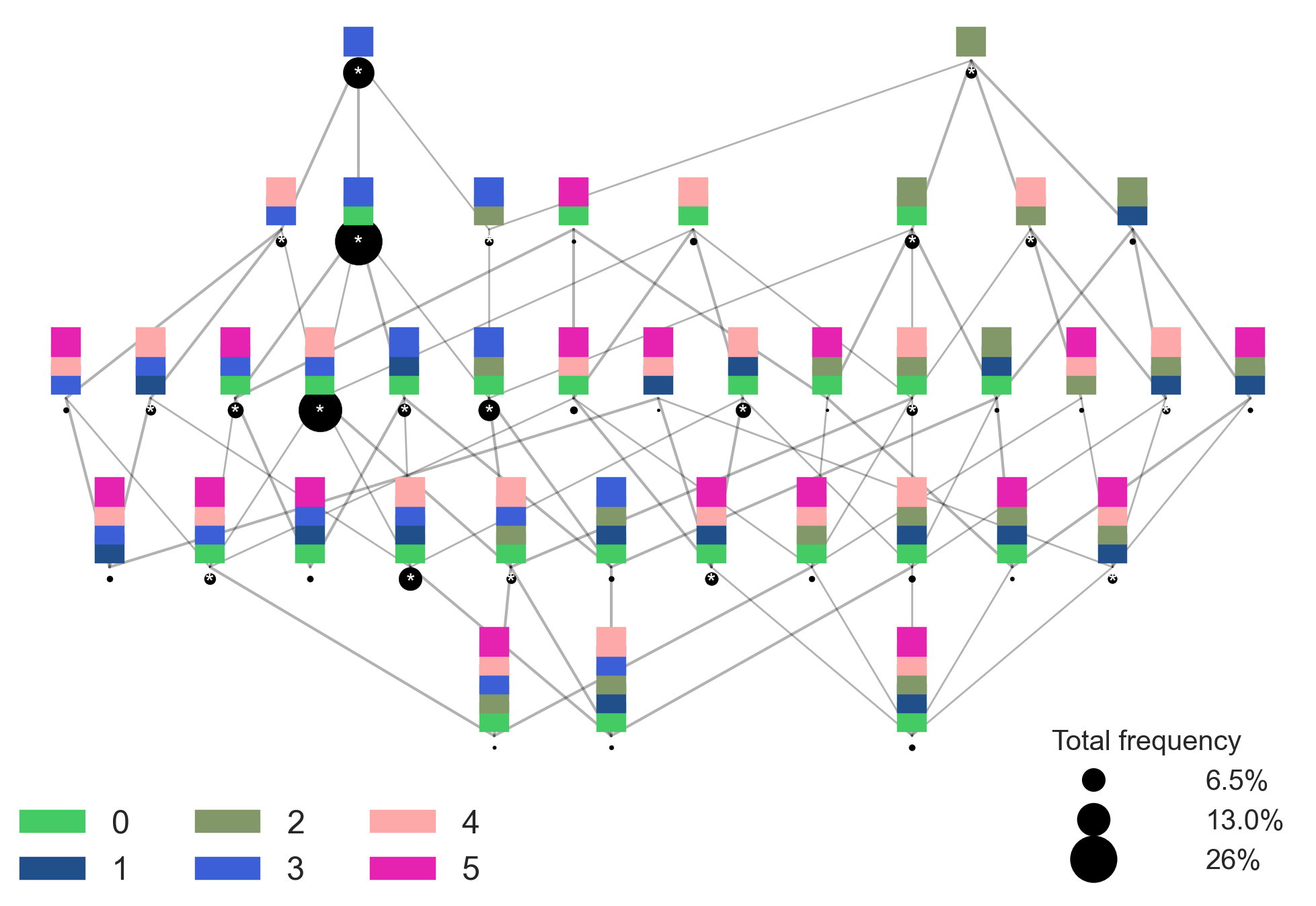

Spatial context map

cnmap_dict_imc = sp.tl.build_cn_map(
    adata = adata, # adata object
    cn_col = "CN_k20_n6",# column with CNs
    palette = None, # color dictionary
    unique_region = 'condition',# column with unique regions
    k = 70, # number of neighbors
    X='x', Y='y',  # coordinates
    threshold = 0.85, # threshold for percentage of cells in CN
    per_keep_thres = 0.85,) # threshold for percentage of cells in CN

Starting: 1/1 : imc
Finishing: 1/1 : imc 0.055667877197265625 0.055673837661743164
12 0.014138817480719768

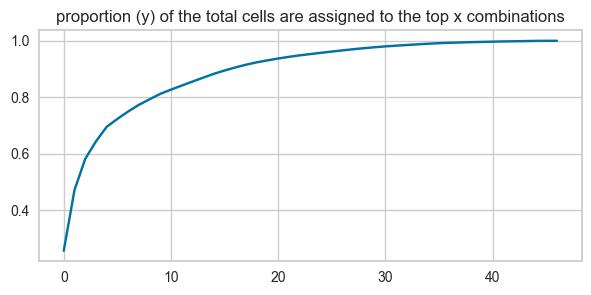

sp.pl.cn_map(cnmap_dict = cnmap_dict_imc, # dictionary from the previous step
        adata = adata, # adata object
        cn_col = "CN_k20_n6", # column with CNs used to color the plot
        palette = None, # color dictionary
        figsize=(25, 15), # figure size
        savefig=False, # save figure as pdf
        output_fname = "", # change it to file name you prefer when saving the figure
        output_dir= output_dir # specify output directory here (if savefig=True)
    )

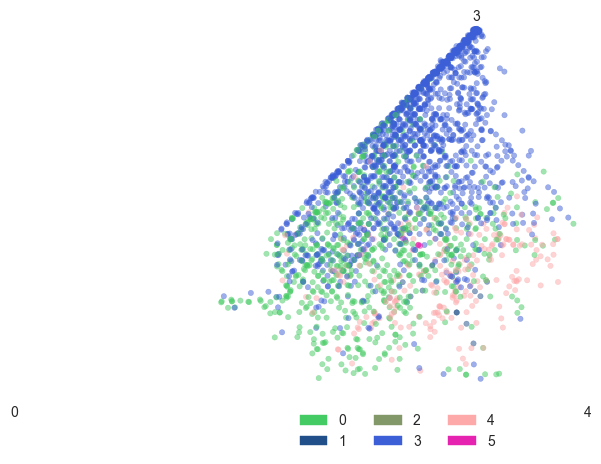

Barycentric coordinate plots

sp.pl.BC_projection(adata=adata,
    cnmap_dict = cnmap_dict_imc, # dictionary from the previous step
    cn_col = "CN_k20_n6", # column with CNs
    plot_list = [0, 3, 4], # list of CNs to plot (three for the corners)
    cn_col_annt = "CN_k20_n6", # column with CNs used to color the plot
    palette = None, # color dictionary
    figsize=(5, 5), # figure size
    rand_seed = 1, # random seed for reproducibility
    n_num = None, # number of neighbors
    threshold = 0.6) # threshold for percentage of cells in CN

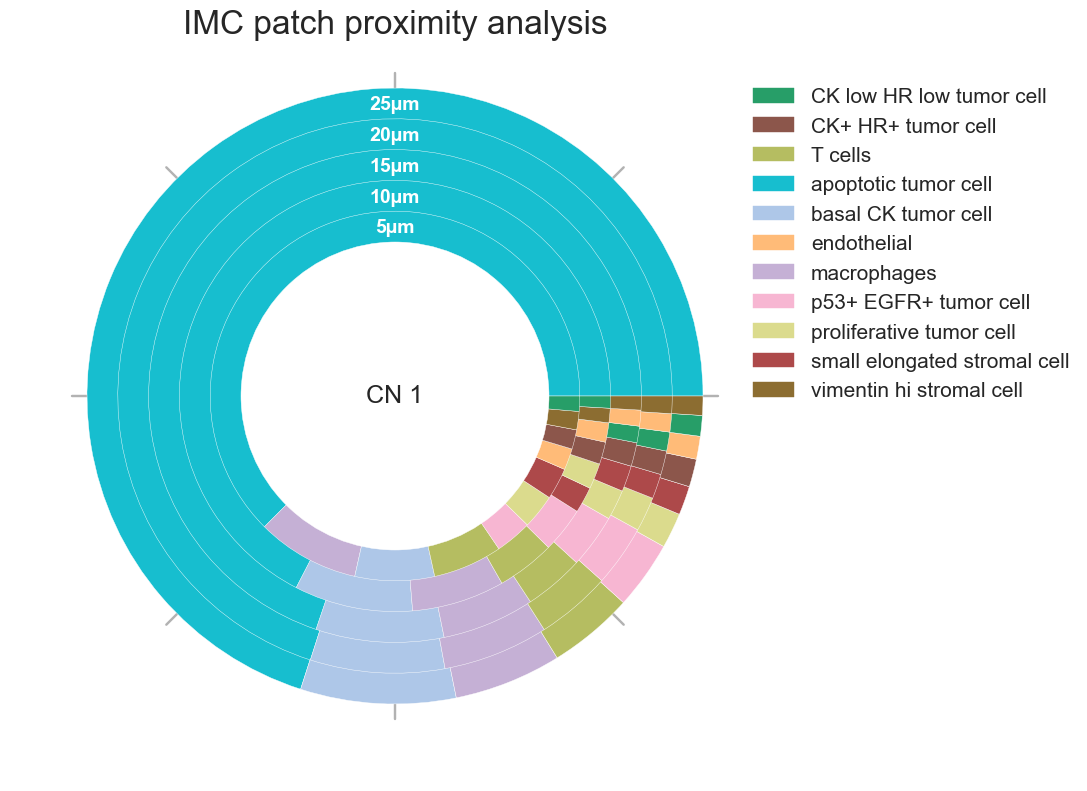

Patch proximity analysis

adata.obs['CN_k20_n6'] = adata.obs['CN_k20_n6'].astype(str)

region_results = sp.tl.patch_proximity_analysis(
    adata,
    region_column = "condition", # column with the region information
    patch_column = "CN_k20_n6", # column with the patch information (derive patches from this column)
    group='1', # group to consider
    min_cluster_size=20, # minimum cluster size to consider
    x_column='x', y_column='y', # spatial coordinates
    radius = 20, # to get the distance in µm
    edge_neighbours = 2, # number of neighbours to consider for edge detection
    key_name = 'ppa_result_20', # key name to store the result in adata.uns

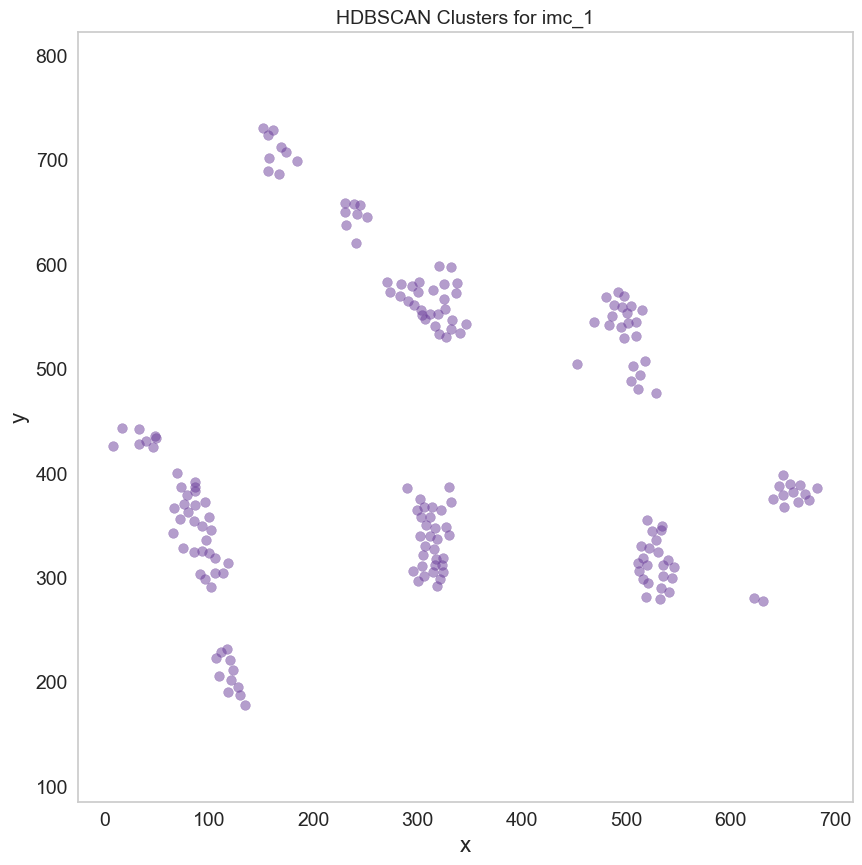

    plot = True) # plot detection for demonstration purposes
